In heavy industrial projects, a safe crane service platform system is the key to optimizing overhead crane maintenance. This article analyzes the detailed structure, design standards, and optimized solutions from VIETWALK that enhance operational efficiency and equipment lifespan.
What is a Crane Service Platform?
A Crane Service Platform (also known as a Maintenance Walkway) is a system of walkways and workstations installed along the main girders or end carriages of a crane.
Practical Roles:
- Provides rapid access to components such as motors, gearboxes, and hoists.
- Facilitates inspection of electrical panels and control systems.
- Enables periodic maintenance without the need for temporary scaffolding.
Case Study: In a container port project, the addition of service platforms reduced maintenance downtime by 40% and virtually eliminated accidents related to working at heights.
Superior Applications in Heavy Industry & Seaports
Engineered to withstand heavy loads and corrosion, these platforms are durable in harsh industrial environments. They play a core role in:
Seaports & Logistics:
- RTG, RMG, and STS cranes.
- Supporting engineers in maintaining container handling systems 24/7.
Heavy Industrial Plants:
- Steel mills, cement plants, and thermal power stations.
- Designed for heat resistance, corrosion protection, and high load capacity.
Renewable Energy:
- Wind and solar power plants.
- Serving as maintenance walkways for elevated systems.
Detailed Structure of the VIETWALK Crane Service Platform System
A complete safety crane service platform system integrated with a crane includes the following components:
- Platform Deck: Typically utilizes checkered plate (diamond plate) or specialized steel grating to ensure maximum slip resistance.
- Stairway: Industrial-grade stairs with grating steps for safe personnel transit.
- Handrail: A robust protective barrier system to prevent falls from heights. The system is manufactured and installed synchronously with accessories such as stanchion bases, handrail pipes, elbow connectors, anchor bolts, and connection base plates.
- Supplementary Accessories: * Vertical Ladder & Safety Cage (Hoop): Ladders installed along the crane body, combined with curved steel hoops to protect workers from falls.
- Toe Plate (Kick Plate): Mounted along the edges of the platform at a specific height to prevent tools from falling and to prevent operator slips.
Technical Specifications & Applicable Standards (JIS, ASTM, ISO)
High-quality crane service platform systems comply with:
- ISO 9001:2015 – Quality Management.
- JIS (Japan) – Material & Structural Standards.
- ASTM (USA) – Steel & Mechanical Property Standards.
Reference Specifications:
- Length: 11,000 mm
- Width: 2,000 mm
- Handrail Height: 1,100 – 1,200 mm
- Material: SS400 / SUS304
- Surface Treatment: Hot-dip galvanizing or Epoxy coating

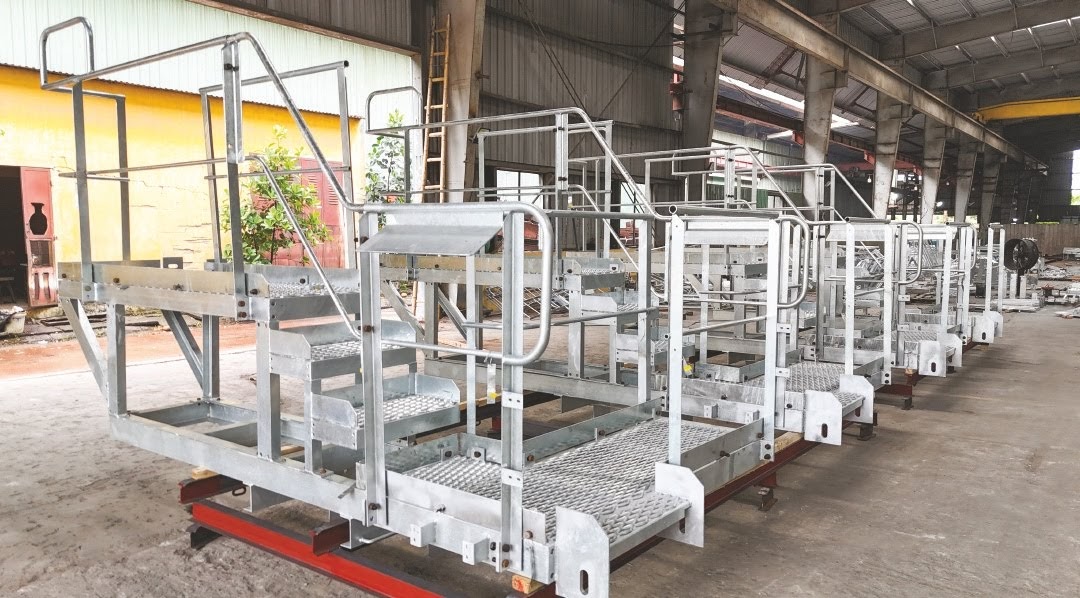

Note: In practice, 100% of systems require custom design based on specific load requirements and installation space.
VIETWALK: International Standard Design & Fabrication Solutions
VIETWALK provides turnkey solutions:
-
- Design based on 3D modeling and international standards.
- Precision CNC fabrication with strict tolerance control.
- Anti-corrosion surface treatment for marine environments.
- Synchronous installation with crane systems.
If you are looking for an international-standard service platform solution, partnering with an experienced provider like VIETWALK is a strategic choice.
